配置 SSL

Neo4j SSL 框架 可与 Neo4j Helm 图表一起使用。您可以为 bolt、https、cluster 和 backup 指定 SSL 策略对象。要与 Neo4j Helm 部署一起使用的 SSL 公共证书和私钥必须存储在 Kubernetes Secrets 中。

要启用 Neo4j SSL 策略，请在 Neo4j Helm 部署的 values.yaml 文件中配置 ssl.<policy name> 对象以引用包含要使用的 SSL 证书和密钥的 Kubernetes Secrets。此示例显示如何配置 bolt SSL 策略

ssl:
 bolt:
   privateKey:
     secretName: bolt-cert
     subPath: private.key
   publicCertificate:
     secretName: bolt-cert
     subPath: public.crt

当在 values.yaml 文件中指定私钥时，Neo4j ssl 策略将自动启用。要禁用策略，请将 dbms.ssl.policy.{{ $name }}.enabled: "false" 添加到 config 对象中。

当 https 启用时，未加密的 http 不会自动禁用。如果启用了 https，请将 server.http.enabled: "false" 添加到 config 对象中以禁用 http。

有关配置 SSL 策略的更多信息，请参阅 SSL 框架配置.

以下示例显示如何部署具有配置的 SSL 策略的 Neo4j 集群。

创建自签名证书

如果您没有自签名证书可以使用，请按照以下步骤创建一个

  1. 为自签名证书创建一个新文件夹。此示例使用 /neo4j-ssl 文件夹。

    mkdir neo4j-ssl
cd neo4j-ssl

  2. 使用 openssl 命令并传递 subj 参数中的所有值来创建自签名证书的 private.key 和 public.crt

    openssl req -newkey rsa:2048 -nodes -keyout private.key -x509 -days 365 -out public.crt -subj "/C=GB/ST=London/L=London/O=Neo4j/OU=IT Department"

  3. 验证 private.key 和 public.crt 文件是否已创建

    ls -lst
    示例输出
    -rw-r--r--  1 user  staff  1679  28 Dec 15:00 private.key
-rw-r--r--  1 user  staff  1679  28 Dec 15:00 public.crt

创建一个 neo4j 命名空间并将其配置为在当前上下文中使用

kubectl create namespace neo4j
kubectl config set-context --current --namespace=neo4j

使用 tls Kubernetes 密钥配置 SSL 策略

此示例展示了如何使用存储在 tls Kubernetes 密钥中的自签名证书为集群内通信配置 SSL 策略。

  1. 使用 public.crt 和 private.key 文件创建 Kubernetes TSL 密钥

    您必须拥有运行中的 Kubernetes 集群，并且已安装 kubectl 命令。有关更多信息，请参阅 先决条件。

    1. 要创建 TLS 密钥，请使用 tls 选项和密钥名称，例如 neo4j-tls

      kubectl create secret tls neo4j-tls --cert=/path/to/neo4j-ssl/public.crt --key=/path/to/neo4j-ssl/private.key

    2. 验证密钥是否已创建

      kubectl get secret
      示例输出
      NAME                  TYPE                                  DATA   AGE
neo4j-tls             kubernetes.io/tls                     2      4s

    3. 验证密钥是否包含 public.crt 和 private.key 文件

      kubectl get secret neo4j-tls -o yaml
      示例输出
      apiVersion: v1
data:
  tls.crt: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURLakNDQWhJQ0NRRGRYYVg1Y29mczdEQU5CZ2txaGtpRzl3MEJBUXNGQURCWE1Rc3dDUVlEVlFRR0V3SkgKUWpFUE1BMEdBMVVFQ0F3R1RHOXVaRzl1TVE4d0RRWURWUVFIREFaTWIyNWtiMjR4RGpBTUJnTlZCQW9NQlU1bApielJxTVJZd0ZBWURWUVFMREExSlZDQkVaWEJoY25SdFpXNTBNQjRYRFRJeU1USXlPREl4TURjeU5sb1hEVEl6Ck1USXlPREl4TURjeU5sb3dWekVMTUFrR0ExVUVCaE1DUjBJeER6QU5CZ05WQkFnTUJreHZibVJ2YmpFUE1BMEcKQTFVRUJ3d0dURzl1Wkc5dU1RNHdEQVlEVlFRS0RBVk9aVzgwYWpFV01CUUdBMVVFQ3d3TlNWUWdSR1Z3WVhKMApiV1Z1ZERDQ0FTSXdEUVlKS29aSWh2Y05BUUVCQlFBRGdnRVBBRENDQVFvQ2dnRUJBTDBRc0c2Ukwrd3hxZSt3CjJGSWljZldVaUFtdmNqeVdlS0lKaThuT2tBSGIvSTYzUUU2L3ZpR3RNeEI3S28xdUJLNlVPZXBaeU91UzE2bUMKaitpMDAwbmFnWkR3RGNyRXd3UUE1cTBGMC90VXB5UHBaL1p3clhEaGFDOXhzVnFnVms0TXl5aUtTNzRIOUc2UgprUUV4dHBaNFArcTlaRHVFVk1KVGVaL2pQNGZoTkg2MUpSTVdORTJ3NjNUWkx2ZGMyUitXL2U5N3h2TGQ5Y0FnCjlqTm9FMHo5UHRmczB2L2lyUGhuUHpzWHQ5bzE0MWlnOVFZNjNtMzBxQ0NaYnpMRlR6WFgvdTUvTSsycFB3WXoKcUNOTUZYYW1ITlAxdlRPWFlRTG1iYW1JdVplYnVPNEVlUHZ6WUVXSmEyUi9oTmhtUDNvM2tRVFAzdmF1UEFjZQpSQlJZS09NQ0F3RUFBVEFOQmdrcWhraUc5dzBCQVFzRkFBT0NBUUVBWVh6SkIzNU55cExDUEdvQXVJdGt5dHBFCk1ZeSs5YnlrV3BEVnhRaXZLUHQ3d1NUaWZjNU1QdW5NUy9xYmxnaWprWm5IaWVLeEdoU3lQL283QndtMzJDSnAKQUFsSjJ3RjhIVXVSSGpYcUU5dkNQeFdtVlVJS2ExOWN5V0tUYWhySWU1eWZkQWNkbUJmRzJNWnY0dEdFeWxsUgo0Vk81STdRNjVWZDlGQnB0U3JjS3R1WUtBUzg2RTBHZmlmMWxCakdUZTFZbkhvK1RZTVpoVEUvN3RlNHZ1M251CjA4Y1BmbS9RYThSNFBXZDZNbXVDaTJYcDduWVlEMmp3WklCSENtMUU3U1RrdS9JRk5kOWFWRW91VG5KR1pCWFcKeWVzWG9OMXhOb3kvMXZFdElhV2xXZW1GcGo4clJ6VGJQekQ1TEpiNDBSRFVOTXN3NytLUXczV3BBMjVKUHc9PQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
  tls.key: LS0tLS1CRUdJTiBQUklWQVRFIEtFWS0tLS0tCk1JSUV2QUlCQURBTkJna3Foa2lHOXcwQkFRRUZBQVNDQktZd2dnU2lBZ0VBQW9JQkFRQzlFTEJ1a1Mvc01hbnYKc05oU0luSDFsSWdKcjNJOGxuaWlDWXZKenBBQjIveU90MEJPdjc0aHJUTVFleXFOYmdTdWxEbnFXY2pya3RlcApnby9vdE5OSjJvR1E4QTNLeE1NRUFPYXRCZFA3VktjajZXZjJjSzF3NFdndmNiRmFvRlpPRE1zb2lrdStCL1J1CmtaRUJNYmFXZUQvcXZXUTdoRlRDVTNtZjR6K0g0VFIrdFNVVEZqUk5zT3QwMlM3M1hOa2ZsdjN2ZThieTNmWEEKSVBZemFCTk0vVDdYN05MLzRxejRaejg3RjdmYU5lTllvUFVHT3Q1dDlLZ2dtVzh5eFU4MTEvN3VmelB0cVQ4RwpNNmdqVEJWMnBoelQ5YjB6bDJFQzVtMnBpTG1YbTdqdUJIajc4MkJGaVd0a2Y0VFlaajk2TjVFRXo5NzJyandICkhrUVVXQ2pqQWdNQkFBRUNnZ0VBTmF6OVNnYXlJazVmUG90b2Zya0V2WUh6dFR3NEpIZGJ2RFVWbUsrcU5yenIKME9DNXd5R3dxd0x2RW1qRlJlM01Lbnd1alJmOGNOVDVvVWhON3ZVWFgwcEhxb3hjZmdxcWl3SnVld1RDa0FJUwppYUdFUUhUdzZMRTEwUEpvTmFCN29DRUZ0SGErMWk2UCtLd2ZETVcrWHEyNUI3M0pMUlIrczhUYkxNZHBpL3VvCjRmTFNJV0xDV09MZThUTlU0ck5vVDQ0enY0eUhUOXAyV3liSUNrL3F5bVV3bTlhRHFnYzRJRzk4YXVVNG5JYVQKenk2T3NBODdONW9FME0rcHlUdEFJcmxRZFBXUzBBZ28xZUJCcWplL1I3MTI4TmdHVzhOTzVMWDBtNit2YzhyVgpaTHh0N1d0NThucXR2WlI3QTF5SU9lbWtocHl2Q3hrNVRxSmZQRlJxRVFLQmdRRGlOL3NBZncrZ1dvTFpLbTNyCm50WVkyRW9TOTBkQ0wwd293SGFGa0lsL2hIWXduQi9qaWlnMU5ZbEhDNzNPVDdDc2UycS9tS0xhMzZBVHlpTHcKZjN1T0J3NmNFZ2RJZlU5aDBtZjJCNFZXdEVEeDJMSU94MEtZU2VrYldTTVZQZ2w2SkhNb3hLdjNMbEx5R1RiMApZQmtKVmpRdkVLS1dpa1FLMUdPYnZtdzFWUUtCZ1FEVjlJLzc5WFJuN1EzZ3M4Z2JqZWhDejRqNHdtNWdpNFM2CkVsVzVJWkFidDh3QWZPdVIzUm4wQW41NFl0ZW1HUk1seDF0L1ZUM1IzK0J5bmVTZEgzbUJ6eVJEQysvRGhBTlYKNVZPckk5SFhnVTRMSElVMmNwVVZxYVo3N1J1b2JnTmlDenBmOVZPVkNadzdmQzRPYkFqcTMzQ3RtT2taR0hRbAo2dkJtNm1ubFZ3S0JnQ2FnOW95TUplZjA3TGtXcExTQ1ovN1FHRDRLMmJFMGtHVzVEOFFZL1ZHNEZkS1JKbVRkCmQ2WTJZUjJ2cEpheFJ2TDlGQ3BwYncyKzkvL0pHWlJGd0p4dEdoS09oWTNjVUF6ZE9BRnNJVm0vNkFNa1JLdC8KWFNEU0ppc1VXb2hMRXFVM3lpNWcveGh6WVppVHM2MmhKMFZQNGhOVFhPQWw5aDUvVEE4UlFqc05Bb0dBTm84Twp5R2xuTGJrOWVMZGZwK2NmK3ltQS9DNVloellNdW9aQ1pkc3hMR0JLSFRXOXZJeHRPZFFJL0JuNGM5cWhEMWt1CjgrR0F5aXdVeUNXTFRxWGdEa0lNTlN5dUQyVnlsRXpPY1MzSkxQTkVPNEVpVnlnUTdGMCtud3R2cWh1anNUUzcKeGd5Qks5Z3ZodHU3d3VHNXhHc0dDTDZkY2xEU0RYbERwSHJTVmpFQ2dZQWx0STNjMzJxaG5KU2xHSGhjdW1wRwpReGpvYnJBUUxUa3dyOWk2TkNuS0EyNVR1SVFXa1NiN2JUWWtuUi80WDhOT2w2U2EvYm9QK2dncWNJM0haSk05CkxJRnpPUTFWT1luQ2ZYZVd0SmlHQklwUExadFdobnA3NGVhdmJKYW9udlhVVGNZcm5qcytIWGhpaFhjOUhENWsKeEJEaWJKYUlEbXg2T1FpVWI2RndJZz09Ci0tLS0tRU5EIFBSSVZBVEUgS0VZLS0tLS0K
kind: Secret
metadata:
  creationTimestamp: "2023-01-04T13:53:14Z"
  managedFields:
  - apiVersion: v1
    fieldsType: FieldsV1
    fieldsV1:
      f:data:
        .: {}
        f:tls.crt: {}
        f:tls.key: {}
      f:type: {}
    manager: kubectl
    operation: Update
    time: "2023-01-04T13:53:14Z"
  name: neo4j-tls
  namespace: neo4j
  resourceVersion: "212009"
  uid: b1be45dd-4cbe-41c9-a6e5-c814c5e39c25
type: kubernetes.io/tls

  2. 使用创建的密钥在 ssl-values.yaml 文件中配置 ssl 对象

    ssl:
# setting per "connector" matching neo4j config
  bolt:
    privateKey:
      secretName: neo4j-tls
      subPath: tls.key
    publicCertificate:
      secretName: neo4j-tls
      subPath: tls.crt
  https:
    privateKey:
      secretName: neo4j-tls
      subPath: tls.key
    publicCertificate:
      secretName: neo4j-tls
      subPath: tls.crt
    trustedCerts:
      sources:
      - secret:
          name: neo4j-tls
          items:
          - key: tls.crt
            path: public.crt
  cluster:
    privateKey:
      secretName: neo4j-tls
      subPath: tls.key
    publicCertificate:
      secretName: neo4j-tls
      subPath: tls.crt
    trustedCerts:
      sources:
      - secret:
          name: neo4j-tls
          items:
          - key: tls.crt
            path: public.crt
    revokedCerts:
      sources: [ ]

现在，您可以使用已配置的 ssl-values.yaml 文件和 Neo4j Helm 图表 部署 Neo4j 集群。

使用 generic Kubernetes 密钥配置 SSL 策略

此示例展示了如何使用存储在 generic Kubernetes 密钥中的自签名证书为集群内通信配置 SSL 策略。

  1. 使用 public.crt 和 private.key 文件创建 Kubernetes generic 密钥

    您必须拥有运行中的 Kubernetes 集群，并且已安装 kubectl 命令。有关更多信息，请参阅 先决条件。

    1. 获取 public.crt 和 private.key 的 Base64 编码值

      cat public.crt| base64
      cat private.key| base64

    2. 使用 public.crt 和 private.key 的 Base64 编码值，创建一个 secret.yaml 文件

      apiVersion: v1
data:
  public.crt: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURLakNDQWhJQ0NRRGRYYVg1Y29mczdEQU5CZ2txaGtpRzl3MEJBUXNGQURCWE1Rc3dDUVlEVlFRR0V3SkgKUWpFUE1BMEdBMVVFQ0F3R1RHOXVaRzl1TVE4d0RRWURWUVFIREFaTWIyNWtiMjR4RGpBTUJnTlZCQW9NQlU1bApielJxTVJZd0ZBWURWUVFMREExSlZDQkVaWEJoY25SdFpXNTBNQjRYRFRJeU1USXlPREl4TURjeU5sb1hEVEl6Ck1USXlPREl4TURjeU5sb3dWekVMTUFrR0ExVUVCaE1DUjBJeER6QU5CZ05WQkFnTUJreHZibVJ2YmpFUE1BMEcKQTFVRUJ3d0dURzl1Wkc5dU1RNHdEQVlEVlFRS0RBVk9aVzgwYWpFV01CUUdBMVVFQ3d3TlNWUWdSR1Z3WVhKMApiV1Z1ZERDQ0FTSXdEUVlKS29aSWh2Y05BUUVCQlFBRGdnRVBBRENDQVFvQ2dnRUJBTDBRc0c2Ukwrd3hxZSt3CjJGSWljZldVaUFtdmNqeVdlS0lKaThuT2tBSGIvSTYzUUU2L3ZpR3RNeEI3S28xdUJLNlVPZXBaeU91UzE2bUMKaitpMDAwbmFnWkR3RGNyRXd3UUE1cTBGMC90VXB5UHBaL1p3clhEaGFDOXhzVnFnVms0TXl5aUtTNzRIOUc2UgprUUV4dHBaNFArcTlaRHVFVk1KVGVaL2pQNGZoTkg2MUpSTVdORTJ3NjNUWkx2ZGMyUitXL2U5N3h2TGQ5Y0FnCjlqTm9FMHo5UHRmczB2L2lyUGhuUHpzWHQ5bzE0MWlnOVFZNjNtMzBxQ0NaYnpMRlR6WFgvdTUvTSsycFB3WXoKcUNOTUZYYW1ITlAxdlRPWFlRTG1iYW1JdVplYnVPNEVlUHZ6WUVXSmEyUi9oTmhtUDNvM2tRVFAzdmF1UEFjZQpSQlJZS09NQ0F3RUFBVEFOQmdrcWhraUc5dzBCQVFzRkFBT0NBUUVBWVh6SkIzNU55cExDUEdvQXVJdGt5dHBFCk1ZeSs5YnlrV3BEVnhRaXZLUHQ3d1NUaWZjNU1QdW5NUy9xYmxnaWprWm5IaWVLeEdoU3lQL283QndtMzJDSnAKQUFsSjJ3RjhIVXVSSGpYcUU5dkNQeFdtVlVJS2ExOWN5V0tUYWhySWU1eWZkQWNkbUJmRzJNWnY0dEdFeWxsUgo0Vk81STdRNjVWZDlGQnB0U3JjS3R1WUtBUzg2RTBHZmlmMWxCakdUZTFZbkhvK1RZTVpoVEUvN3RlNHZ1M251CjA4Y1BmbS9RYThSNFBXZDZNbXVDaTJYcDduWVlEMmp3WklCSENtMUU3U1RrdS9JRk5kOWFWRW91VG5KR1pCWFcKeWVzWG9OMXhOb3kvMXZFdElhV2xXZW1GcGo4clJ6VGJQekQ1TEpiNDBSRFVOTXN3NytLUXczV3BBMjVKUHc9PQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
  private.key: LS0tLS1CRUdJTiBQUklWQVRFIEtFWS0tLS0tCk1JSUV2QUlCQURBTkJna3Foa2lHOXcwQkFRRUZBQVNDQktZd2dnU2lBZ0VBQW9JQkFRQzlFTEJ1a1Mvc01hbnYKc05oU0luSDFsSWdKcjNJOGxuaWlDWXZKenBBQjIveU90MEJPdjc0aHJUTVFleXFOYmdTdWxEbnFXY2pya3RlcApnby9vdE5OSjJvR1E4QTNLeE1NRUFPYXRCZFA3VktjajZXZjJjSzF3NFdndmNiRmFvRlpPRE1zb2lrdStCL1J1CmtaRUJNYmFXZUQvcXZXUTdoRlRDVTNtZjR6K0g0VFIrdFNVVEZqUk5zT3QwMlM3M1hOa2ZsdjN2ZThieTNmWEEKSVBZemFCTk0vVDdYN05MLzRxejRaejg3RjdmYU5lTllvUFVHT3Q1dDlLZ2dtVzh5eFU4MTEvN3VmelB0cVQ4RwpNNmdqVEJWMnBoelQ5YjB6bDJFQzVtMnBpTG1YbTdqdUJIajc4MkJGaVd0a2Y0VFlaajk2TjVFRXo5NzJyandICkhrUVVXQ2pqQWdNQkFBRUNnZ0VBTmF6OVNnYXlJazVmUG90b2Zya0V2WUh6dFR3NEpIZGJ2RFVWbUsrcU5yenIKME9DNXd5R3dxd0x2RW1qRlJlM01Lbnd1alJmOGNOVDVvVWhON3ZVWFgwcEhxb3hjZmdxcWl3SnVld1RDa0FJUwppYUdFUUhUdzZMRTEwUEpvTmFCN29DRUZ0SGErMWk2UCtLd2ZETVcrWHEyNUI3M0pMUlIrczhUYkxNZHBpL3VvCjRmTFNJV0xDV09MZThUTlU0ck5vVDQ0enY0eUhUOXAyV3liSUNrL3F5bVV3bTlhRHFnYzRJRzk4YXVVNG5JYVQKenk2T3NBODdONW9FME0rcHlUdEFJcmxRZFBXUzBBZ28xZUJCcWplL1I3MTI4TmdHVzhOTzVMWDBtNit2YzhyVgpaTHh0N1d0NThucXR2WlI3QTF5SU9lbWtocHl2Q3hrNVRxSmZQRlJxRVFLQmdRRGlOL3NBZncrZ1dvTFpLbTNyCm50WVkyRW9TOTBkQ0wwd293SGFGa0lsL2hIWXduQi9qaWlnMU5ZbEhDNzNPVDdDc2UycS9tS0xhMzZBVHlpTHcKZjN1T0J3NmNFZ2RJZlU5aDBtZjJCNFZXdEVEeDJMSU94MEtZU2VrYldTTVZQZ2w2SkhNb3hLdjNMbEx5R1RiMApZQmtKVmpRdkVLS1dpa1FLMUdPYnZtdzFWUUtCZ1FEVjlJLzc5WFJuN1EzZ3M4Z2JqZWhDejRqNHdtNWdpNFM2CkVsVzVJWkFidDh3QWZPdVIzUm4wQW41NFl0ZW1HUk1seDF0L1ZUM1IzK0J5bmVTZEgzbUJ6eVJEQysvRGhBTlYKNVZPckk5SFhnVTRMSElVMmNwVVZxYVo3N1J1b2JnTmlDenBmOVZPVkNadzdmQzRPYkFqcTMzQ3RtT2taR0hRbAo2dkJtNm1ubFZ3S0JnQ2FnOW95TUplZjA3TGtXcExTQ1ovN1FHRDRLMmJFMGtHVzVEOFFZL1ZHNEZkS1JKbVRkCmQ2WTJZUjJ2cEpheFJ2TDlGQ3BwYncyKzkvL0pHWlJGd0p4dEdoS09oWTNjVUF6ZE9BRnNJVm0vNkFNa1JLdC8KWFNEU0ppc1VXb2hMRXFVM3lpNWcveGh6WVppVHM2MmhKMFZQNGhOVFhPQWw5aDUvVEE4UlFqc05Bb0dBTm84Twp5R2xuTGJrOWVMZGZwK2NmK3ltQS9DNVloellNdW9aQ1pkc3hMR0JLSFRXOXZJeHRPZFFJL0JuNGM5cWhEMWt1CjgrR0F5aXdVeUNXTFRxWGdEa0lNTlN5dUQyVnlsRXpPY1MzSkxQTkVPNEVpVnlnUTdGMCtud3R2cWh1anNUUzcKeGd5Qks5Z3ZodHU3d3VHNXhHc0dDTDZkY2xEU0RYbERwSHJTVmpFQ2dZQWx0STNjMzJxaG5KU2xHSGhjdW1wRwpReGpvYnJBUUxUa3dyOWk2TkNuS0EyNVR1SVFXa1NiN2JUWWtuUi80WDhOT2w2U2EvYm9QK2dncWNJM0haSk05CkxJRnpPUTFWT1luQ2ZYZVd0SmlHQklwUExadFdobnA3NGVhdmJKYW9udlhVVGNZcm5qcytIWGhpaFhjOUhENWsKeEJEaWJKYUlEbXg2T1FpVWI2RndJZz09Ci0tLS0tRU5EIFBSSVZBVEUgS0VZLS0tLS0K
kind: Secret
metadata:
  name: neo4j-tls
  namespace: neo4j
type: Opaque

    3. 使用 kubectl create 命令和 secret.yaml 文件创建通用密钥

      kubectl create -f /path/to/secret.yaml
      示例输出
      secret/neo4j-tls created

    4. 验证密钥是否已创建

      kubectl get secret
      示例输出
      NAME        TYPE     DATA   AGE
neo4j-tls   Opaque   2      85s

  2. 使用创建的密钥在 ssl-values.yaml 文件中配置 ssl 对象

    ssl:
# setting per "connector" matching neo4j config
  bolt:
    privateKey:
      secretName: neo4j-tls
      subPath: private.key
    publicCertificate:
      secretName: neo4j-tls
      subPath: public.crt
  https:
    privateKey:
      secretName: neo4j-tls
      subPath: private.key
    publicCertificate:
      secretName: neo4j-tls
      subPath: public.crt
    trustedCerts:
      sources:
      - secret:
          name: neo4j-tls
          items:
          - key: public.crt
            path: public.crt
  cluster:
    privateKey:
      secretName: neo4j-tls
      subPath: private.key
    publicCertificate:
      secretName: neo4j-tls
      subPath: public.crt
    trustedCerts:
      sources:
      - secret:
          name: neo4j-tls
          items:
          - key: public.crt
            path: public.crt
    revokedCerts:
      sources: [ ]

现在，您可以使用 ssl-values.yaml 文件和 Neo4j Helm 图表部署 Neo4j 集群。

部署具有 SSL 证书的 Neo4j 集群

使用 Neo4j Helm 图表和 ssl-values.yaml 文件部署 Neo4j 集群。

  1. 安装 server-1

    helm install server-1 neo4j/neo4j --namespace neo4j --set neo4j.acceptLicenseAgreement=yes --set neo4j.password=my-password --set neo4j.name="my-cluster" --set neo4j.minimumClusterSize=3 --set neo4j.edition="enterprise" --set volumes.data.mode=defaultStorageClass -f ~/Documents/neo4j-ssl/ssl-values.yaml

  2. 对 server-2 和 server-3 重复上一步的命令。

  3. 验证 Neo4j 集群是否正在运行

    kubectl get pods
    示例输出
    NAME                       READY   STATUS    RESTARTS   AGE
server-1-0                   1/1     Running   0          2m
server-2-0                   1/1     Running   0          2m
server-3-0                   1/1     Running   0          2m

  4. 连接到其中一台服务器，并验证 /certificates/cluster 目录是否包含证书

    kubectl exec -it server-1-0 -- bash
    neo4j@server-1-0:~$ cd certificates/
neo4j@server-1-0:~/certificates$ ls -lst
    示例输出
    total 12
4 drwxr-xr-x 2 root root 4096 Jan  4 13:55 bolt
4 drwxr-xr-x 3 root root 4096 Jan  4 13:55 cluster
4 drwxr-xr-x 3 root root 4096 Jan  4 13:55 https
    neo4j@server-1-0:~/certificates$ cd cluster/
neo4j@server-1-0:~/certificates/cluster$ ls -lst
    示例输出
    total 8
0 drwxrwsrwt 3 root neo4j  100 Jan  4 13:56 trusted
4 -rw-r--r-- 1 root neo4j 1704 Jan  4 13:56 private.key
4 -rw-r--r-- 1 root neo4j 1159 Jan  4 13:56 public.crt
    neo4j@server-1-0:~/certificates/cluster$ cd trusted/
neo4j@server-1-0:~/certificates/cluster/trusted$ ls -lst
    示例输出
    total 0
0 lrwxrwxrwx 1 root neo4j 17 Jan  4 13:56 public.crt -> ..data/public.crt

  5. 退出 Pod

    exit

  6. 使用安装时使用的 neo4j.name 检查 LoadBalancer 服务是否可用

    export NEO4J_NAME=my-cluster
kubectl get service ${NEO4J_NAME}-lb-neo4j
    示例输出
    NAME                  TYPE           CLUSTER-IP     EXTERNAL-IP     PORT(S)                                        AGE
my-cluster-lb-neo4j   LoadBalancer   10.0.134.210   20.237.50.207   7474:31168/TCP,7473:31045/TCP,7687:32708/TCP   3m30s

  7. 使用以下选项之一连接到 Neo4j 集群

    • Neo4j 浏览器

      1. 打开网络浏览器，输入 https://lb-EXTERNAL_IP:7473 （在此示例中，https://20.237.50.207:7473/browser/）。您应该会看到 Neo4j 浏览器。

      2. 使用用户 neo4j 和在部署核心时设置的密码进行身份验证，在此示例中为 my-password。

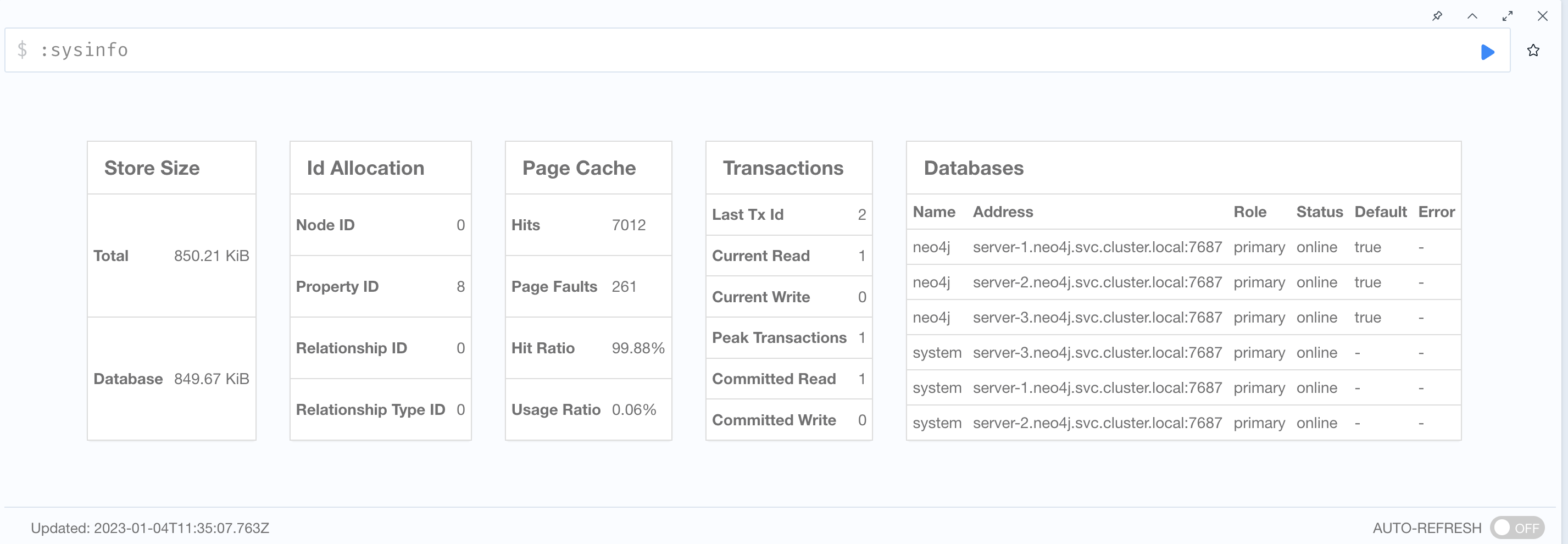

      3. 通过运行 :sysinfo 或 SHOW SERVERS 来验证集群是否在线。

        Cluster sysinfo

      4. 运行 SHOW SETTINGS YIELD name, value WHERE name CONTAINS 'ssl' 来验证配置是否按预期部署。

    • Cypher Shell

      1. 打开终端，连接到其中一个集群 Pod

        kubectl exec -it server-1-0 -- bash

      2. 导航到 bin 目录，使用 cypher-shell 连接到 server-1

        neo4j@server-1-0:~$ cd bin
neo4j@server-1-0:~/bin$ ./cypher-shell -u neo4j -p my-password -a neo4j+ssc://server-1.neo4j.svc.cluster.local:7687
        示例输出
        Connected to Neo4j using Bolt protocol version 5.3 at neo4j+ssc://server-1.neo4j.svc.cluster.local:7687 as user neo4j.
Type :help for a list of available commands or :exit to exit the shell.
Note that Cypher queries must end with a semicolon.
neo4j@neo4j>

      3. 通过运行 SHOW SERVERS 来验证集群是否在线

        neo4j@server-1-0:~/bin$ SHOW SERVERS;
        示例输出
        +-----------------------------------------------------------------------------------------------------------------------------------+
| name                                   | address                                  | state     | health      | hosting             |
+-----------------------------------------------------------------------------------------------------------------------------------+
| "1c5946b1-0eb5-43b9-a549-5601087c57f2" | "server-3.neo4j.svc.cluster.local:7687" | "Enabled" | "Available" | ["neo4j", "system"]  |
| "ba63cd32-3e7d-4042-9935-c8eba925a98f" | "server-1.neo4j.svc.cluster.local:7687"  | "Enabled" | "Available" | ["neo4j", "system"] |
| "cbad7ed6-0c13-4ba7-b6a1-f20c5552dfcd" | "server-2.neo4j.svc.cluster.local:7687" | "Enabled" | "Available" | ["neo4j", "system"]  |
+-----------------------------------------------------------------------------------------------------------------------------------+

      4. 运行 SHOW SETTINGS YIELD name, value WHERE name CONTAINS 'ssl' 来验证配置是否按预期部署。

        示例输出
        +----------------------------------------------------------------------------------------------------+
| name                                           | value                                             |
+----------------------------------------------------------------------------------------------------+
| "dbms.netty.ssl.provider"                      | "JDK"                                             |
| "dbms.ssl.policy.bolt.base_directory"          | "/var/lib/neo4j/certificates/bolt"                |
| "dbms.ssl.policy.bolt.ciphers"                 | "No Value"                                        |
| "dbms.ssl.policy.bolt.client_auth"             | "NONE"                                            |
| "dbms.ssl.policy.bolt.enabled"                 | "true"                                            |
| "dbms.ssl.policy.bolt.private_key"             | "/var/lib/neo4j/certificates/bolt/private.key"    |
| "dbms.ssl.policy.bolt.private_key_password"    | "No Value"                                        |
| "dbms.ssl.policy.bolt.public_certificate"      | "/var/lib/neo4j/certificates/bolt/public.crt"     |
| "dbms.ssl.policy.bolt.revoked_dir"             | "/var/lib/neo4j/certificates/bolt/revoked"        |
| "dbms.ssl.policy.bolt.tls_versions"            | "TLSv1.2"                                         |
| "dbms.ssl.policy.bolt.trust_all"               | "false"                                           |
| "dbms.ssl.policy.bolt.trusted_dir"             | "/var/lib/neo4j/certificates/bolt/trusted"        |
| "dbms.ssl.policy.bolt.verify_hostname"         | "false"                                           |
| "dbms.ssl.policy.cluster.base_directory"       | "/var/lib/neo4j/certificates/cluster"             |
| "dbms.ssl.policy.cluster.ciphers"              | "No Value"                                        |
| "dbms.ssl.policy.cluster.client_auth"          | "REQUIRE"                                         |
| "dbms.ssl.policy.cluster.enabled"              | "true"                                            |
| "dbms.ssl.policy.cluster.private_key"          | "/var/lib/neo4j/certificates/cluster/private.key" |
| "dbms.ssl.policy.cluster.private_key_password" | "No Value"                                        |
| "dbms.ssl.policy.cluster.public_certificate"   | "/var/lib/neo4j/certificates/cluster/public.crt"  |
| "dbms.ssl.policy.cluster.revoked_dir"          | "/var/lib/neo4j/certificates/cluster/revoked"     |
| "dbms.ssl.policy.cluster.tls_versions"         | "TLSv1.2"                                         |
| "dbms.ssl.policy.cluster.trust_all"            | "false"                                           |
| "dbms.ssl.policy.cluster.trusted_dir"          | "/var/lib/neo4j/certificates/cluster/trusted"     |
| "dbms.ssl.policy.cluster.verify_hostname"      | "false"                                           |
| "dbms.ssl.policy.https.base_directory"         | "/var/lib/neo4j/certificates/https"               |
| "dbms.ssl.policy.https.ciphers"                | "No Value"                                        |
| "dbms.ssl.policy.https.client_auth"            | "NONE"                                            |
| "dbms.ssl.policy.https.enabled"                | "true"                                            |
| "dbms.ssl.policy.https.private_key"            | "/var/lib/neo4j/certificates/https/private.key"   |
| "dbms.ssl.policy.https.private_key_password"   | "No Value"                                        |
| "dbms.ssl.policy.https.public_certificate"     | "/var/lib/neo4j/certificates/https/public.crt"    |
| "dbms.ssl.policy.https.revoked_dir"            | "/var/lib/neo4j/certificates/https/revoked"       |
| "dbms.ssl.policy.https.tls_versions"           | "TLSv1.2"                                         |
| "dbms.ssl.policy.https.trust_all"              | "false"                                           |
| "dbms.ssl.policy.https.trusted_dir"            | "/var/lib/neo4j/certificates/https/trusted"       |
| "dbms.ssl.policy.https.verify_hostname"        | "false"                                           |
+----------------------------------------------------------------------------------------------------+

37 rows
ready to start consuming query after 212 ms, results consumed after another 11 ms
